EVENTURI - Carbon Fibre Intake with Carbon Ducts - Mercedes-AMG C63/C63S (W205/S205/C205/A205)

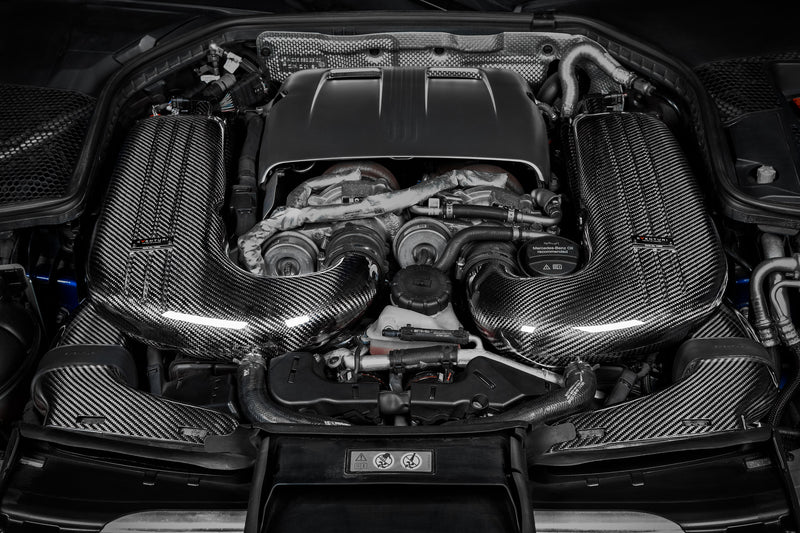

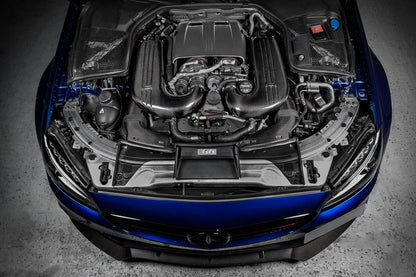

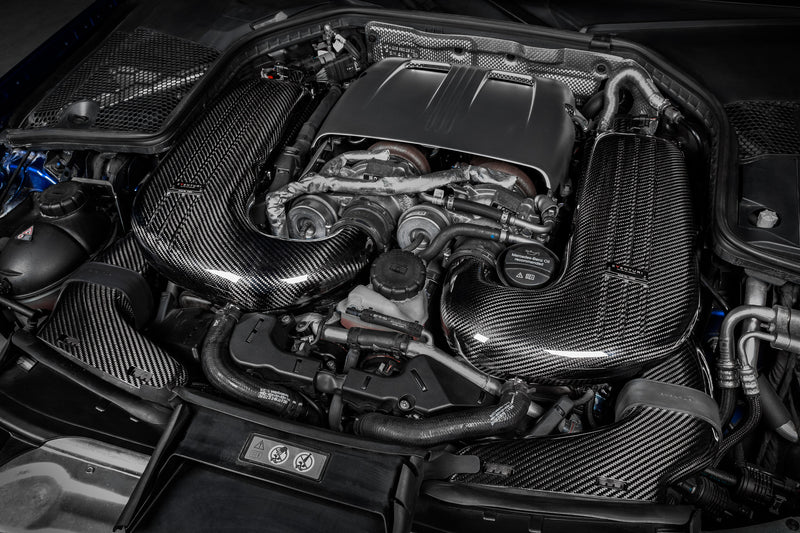

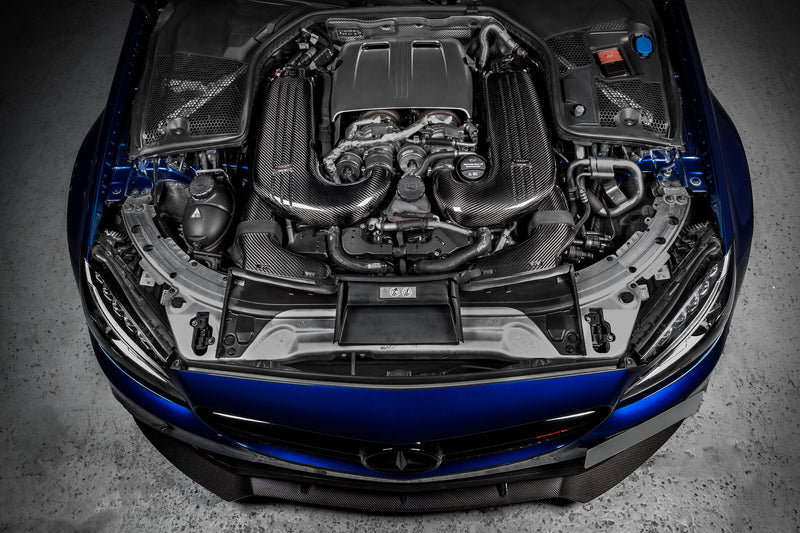

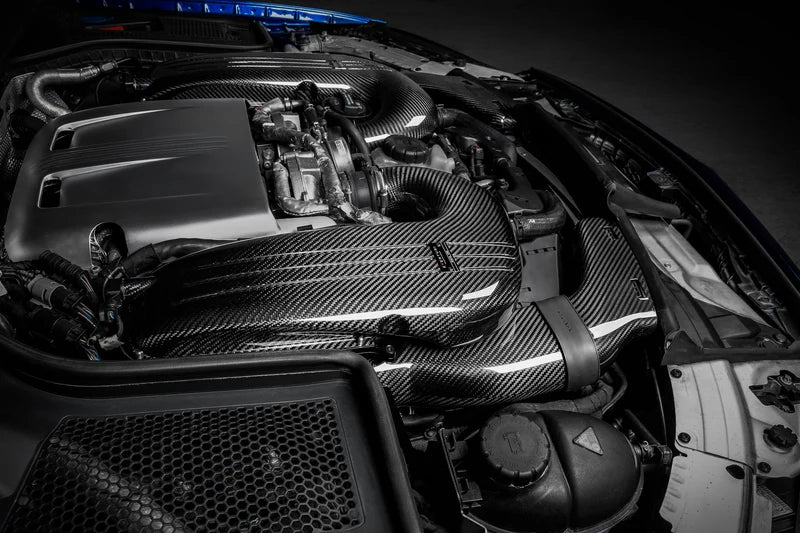

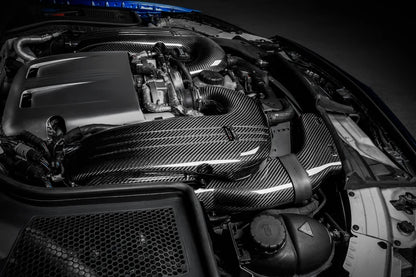

The Eventuri carbon fibre intake system (EVE-C63S-CF-INT) is a complete ultra-high-performance solution with front carbon fibre air ducts for the fourth-generation Mercedes-AMG C63 and C63S range (W205 Saloon, S205 Estate, C205 Coupé and A205 Cabriolet). Designed around three core objectives—increased airflow capacity, complete thermal isolation from engine-bay heat and the preservation of highly laminar airflow—this fully sealed kit delivers a 39% increase in airflow compared with the factory airboxes, radically reducing turbulence at the twin-turbo V8's compressor inlets.

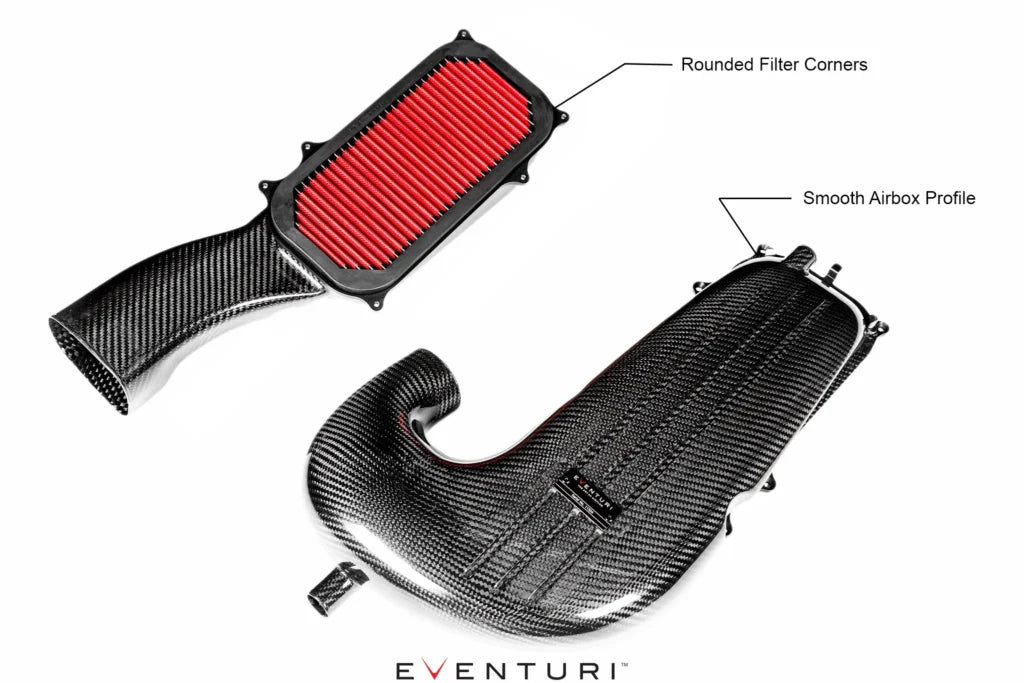

By exploiting every millimetre of available engine-bay space, the Eventuri system increases the internal height of the upper airbox section to 56 mm (compared with the original 23 mm, providing 143% more usable space and an 84% larger lower inlet area). The MAP sensors have been relocated to the rear to recover additional usable volume. In this updated version, the kit includes front carbon fibre air ducts, connected to the airboxes by custom EPDM rubber couplers, ensuring the maximum supply of cool air directly from the front grille. The system also uses custom-shaped high-flow panel filters with a rounded, dual-layer dry-media perimeter (ISO 5011 tested), together with CNC-machined billet black-anodised aluminium flanges for an impeccable airtight seal.

Performance and Technical Data

• Power gain (stock): +10 to +12 hp
• Torque gain (stock): +12 to +15 ft-lb (~16–20 Nm)
• Power gain (Stage 2): +22 to +30 hp
• Torque gain (Stage 2): +20 to +24 ft-lb (~27–32 Nm)
• Airflow increase (flow bench): +39% compared with the original airbox system (from an average 381 CFM factory flow to 531 CFM Eventuri per airbox)

Features

• Type: Sealed high-performance carbon fibre direct intake system with carbon ducts (Carbon Fibre Intake System)
• Product type: Intake / Air Intakes
• Manufacturer: Eventuri
• Product code / SKU: EVE-C63S-CF-INT
• Material: High-quality pre-preg carbon fibre with gloss finish and CNC-machined billet components
• Available turbo-outlet configurations: Compatible with factory/hybrid turbo inlets (61 mm ID) or upgraded aftermarket turbochargers (3-inch ID)

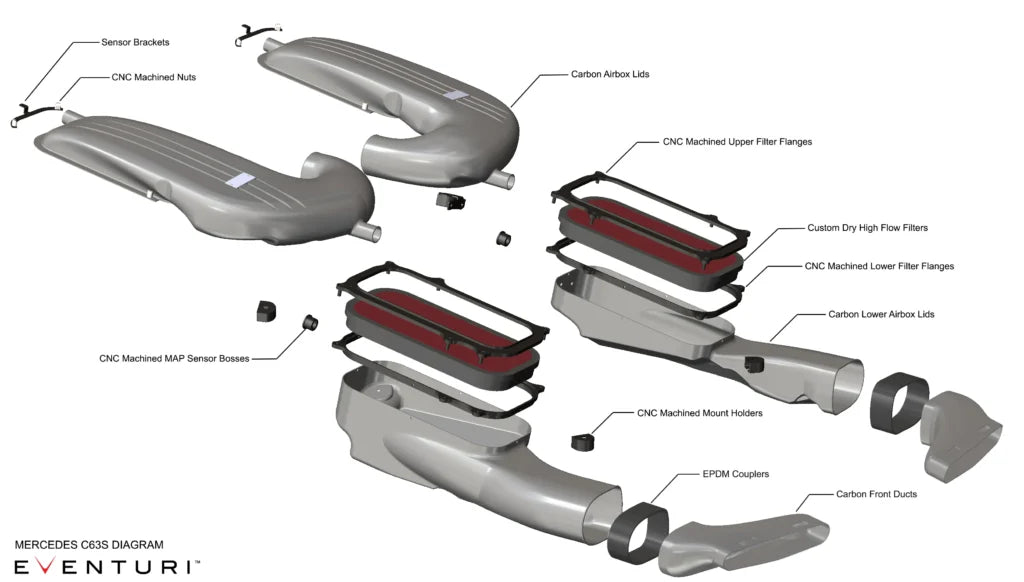

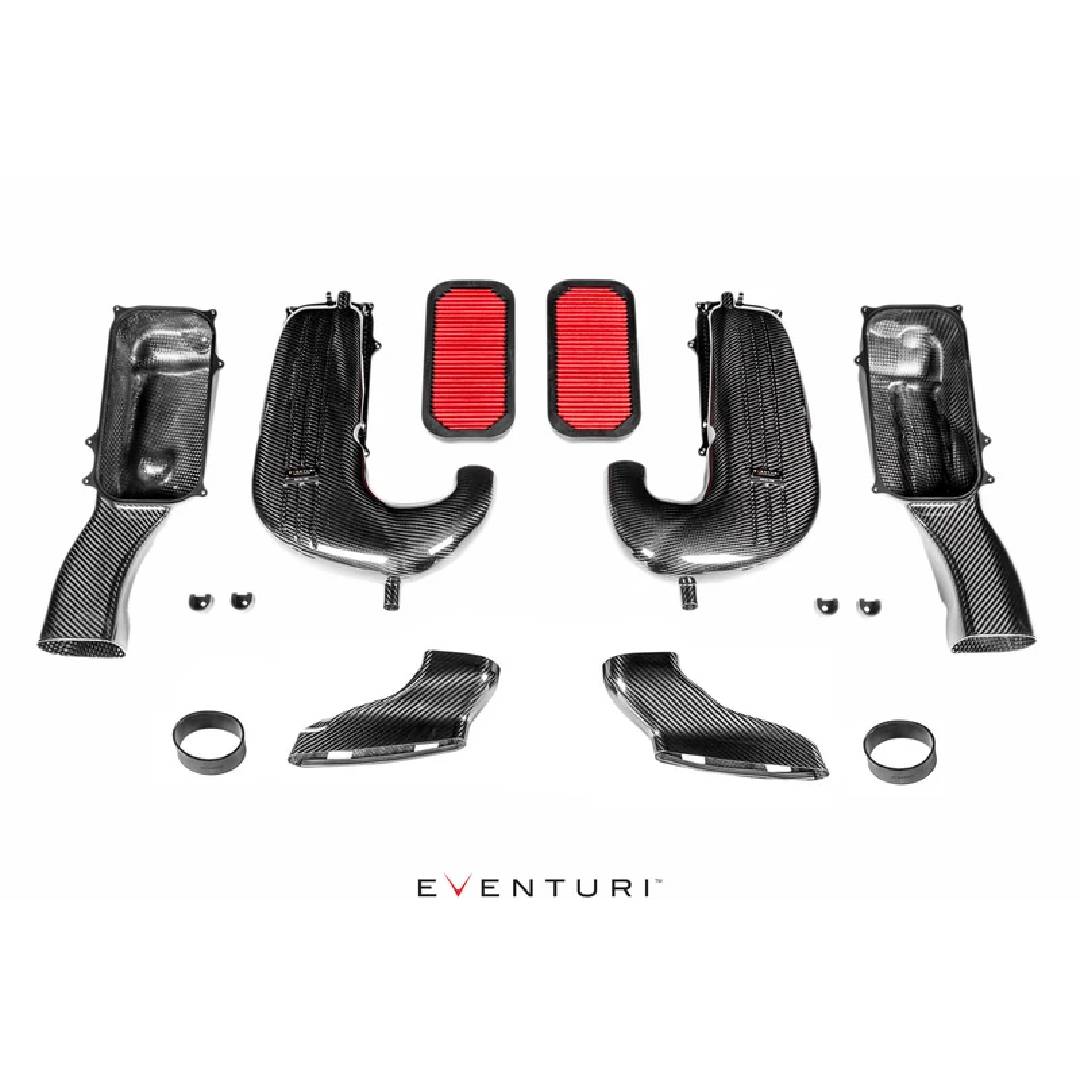

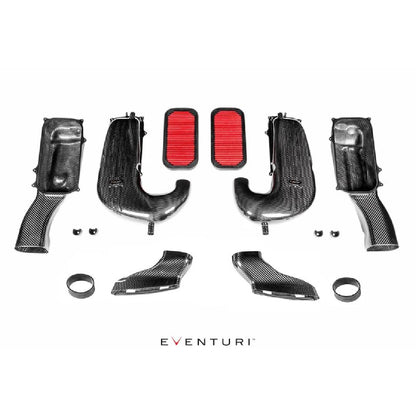

• Components included:

• • 2x carbon fibre upper airbox lids with integrated turbo-inlet couplings

  • 2x carbon fibre lower airbox bases with inlet-duct couplings

  • 2x front carbon fibre air ducts

  • 2x custom flexible EPDM couplers

  • 2x custom-shaped high-flow dry panel filters (ISO 5011 tested)

  • 4x CNC-machined black-anodised aluminium filter sealing flanges

  • 2x rear-mounted CNC-machined MAP sensor housings

  • 4x CNC-machined billet mounts for the OEM mounting grommets

  • Laser-cut stainless-steel support and mounting brackets

• Main benefits: Increased airflow (+39%), front carbon fibre ducts included, complete thermal isolation, reduced turbo lag and enhanced V8 sound
• Direct-fit installation: Developed for precise, faultless installation using the original OEM mounting points
